Mecmetal

MANUFACTURED IN 2022 | FEWER THAN 5,000 CYCLES

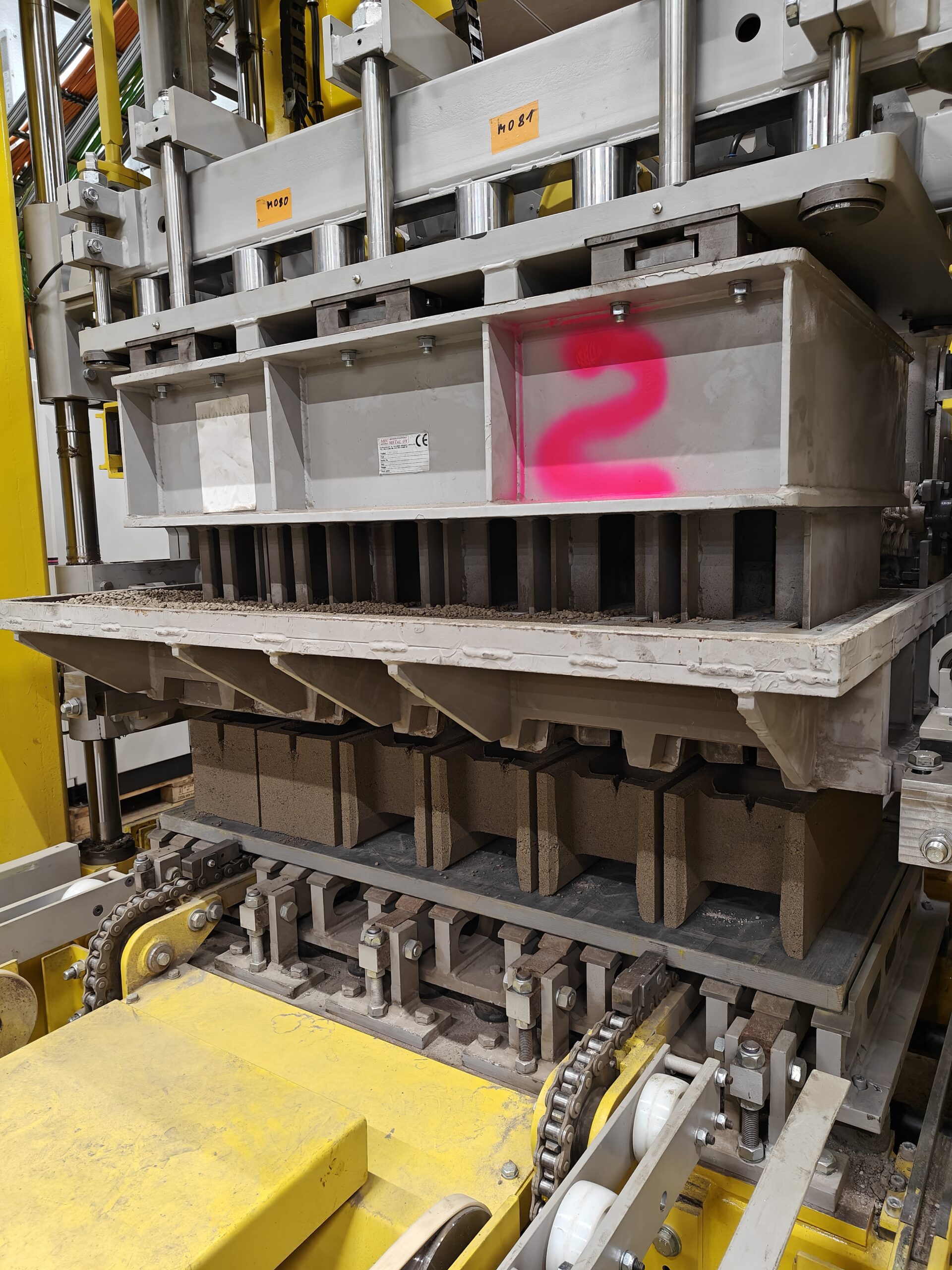

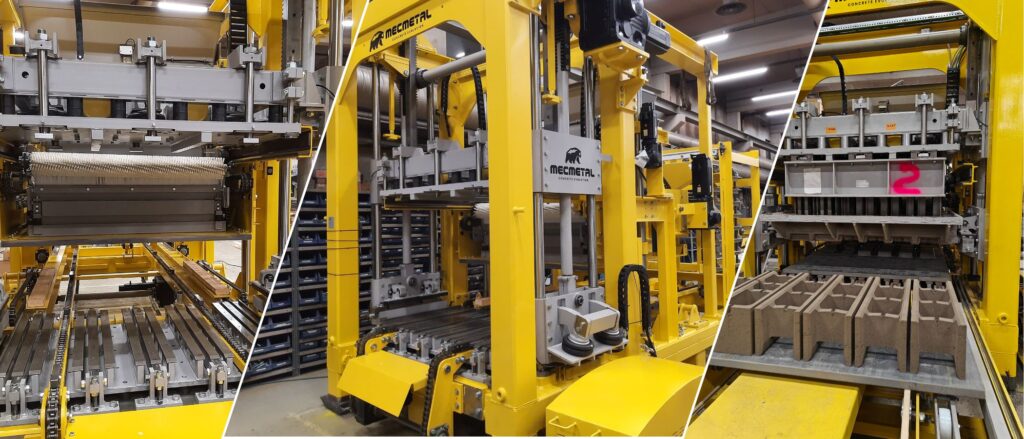

MEC 1470 Electric Concrete Block Machine

FACTORY-PROVEN AND AVAILABLE IMMEDIATELY FROM JOENSUU, FINLAND

A factory-proven, limited-cycle MEC 1470 Electric Concrete Block Machine used only in Mecmetal’s own factory for R&D, product testing, and customer demonstrations. Available now for qualified producers looking to replace or upgrade an existing 1400 × 700 concrete block machine with premium electromechanical technology.

This MEC 1470 is a 2022 factory-owned machine configured for 1400 × 700 mm production pallets. It has been operated only by Mecmetal staff in Mecmetal’s factory in Joensuu, Finland, and has not been used in external customer production. With fewer than 5,000 cycles, recent inspection and service, and immediate availability, it offers a faster and lower-uncertainty route to Mecmetal’s electromechanical block machine technology than a fully custom new-build project.

The machine is offered with selected surrounding equipment and Mecmetal support to make a replacement project easier to plan. The package includes pallet magazine, pallet feeder, receiving conveyor, express mold change system, spare parts, installation, commissioning, operator training, remote support, and warranty coverage.

Machine status
Year: 2022
Location: Joensuu, Finland
Availability: Immediately
Cycles: Fewer than 5,000
Condition: Factory-owned, limited-cycle, like-new
Use history: R&D, customer demonstrations, product testing
Products: Paving stones, concrete blocks, curbstones

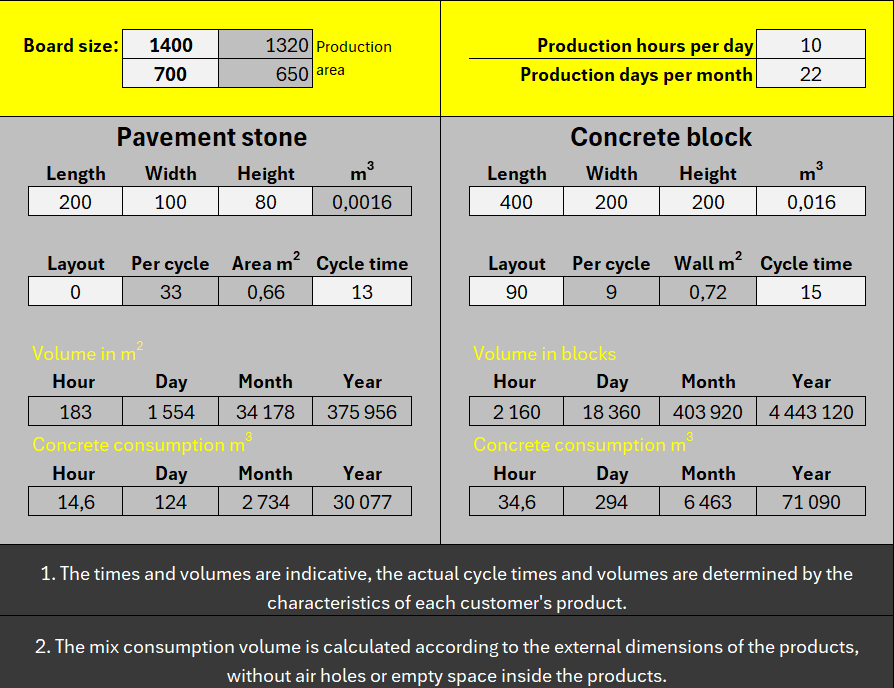

Production capacity of MEC 1470

The Complete Advantages of the MEC Block Machine (PDF)

Advantages

  • Available immediately
  • Factory-proven
  • 1400 × 700 pallet size
  • Fully electromechanical technology
  • Selected pallet handling equipment included
  • Express mold change system included
  • Installation, commissioning, training, and remote support included
  • Can be integrated into existing or new automation concepts after technical review
  • Best fit for block machine replacement projects
  • 5-year frame warranty and 2-year general warranty
Technical properties
Servo motor powered
Connection power: 80 kW
Electricity consumption: 8 kWh
Main switch: 200 A
Compressed air: 200 liters/min
One-piece vibrating table
Four-axis vibration unit powered by four servomotors
Top vibration with two rotating motor vibrators
Laser sensor level measurement in the filling wagon
Three rows of rotating filling activator whisks
Rotating tamper head cleaning brush
Express mold change system
Automatic lubrication
Drawplate included
Evolution-20 control system
B&R by ABB Group HMI
Optional upgrades: face mix, EPS feeder, color mix, and washing unit. Not included in the standard machine package.
Dimensions
Production pallet size 1400 x 700 mm
Product area1320 x 650 mm
Production pallet thickness30 - 50 mm
Minimum product height15 mm
Maximum product height500 mm
Machine weight 13100 kg
Machine height4000 mm
Machine length4200 mm
Machine width3100 mm
