Paver Block Machine

Fully automatic concrete block machine for making paver blocks and stones

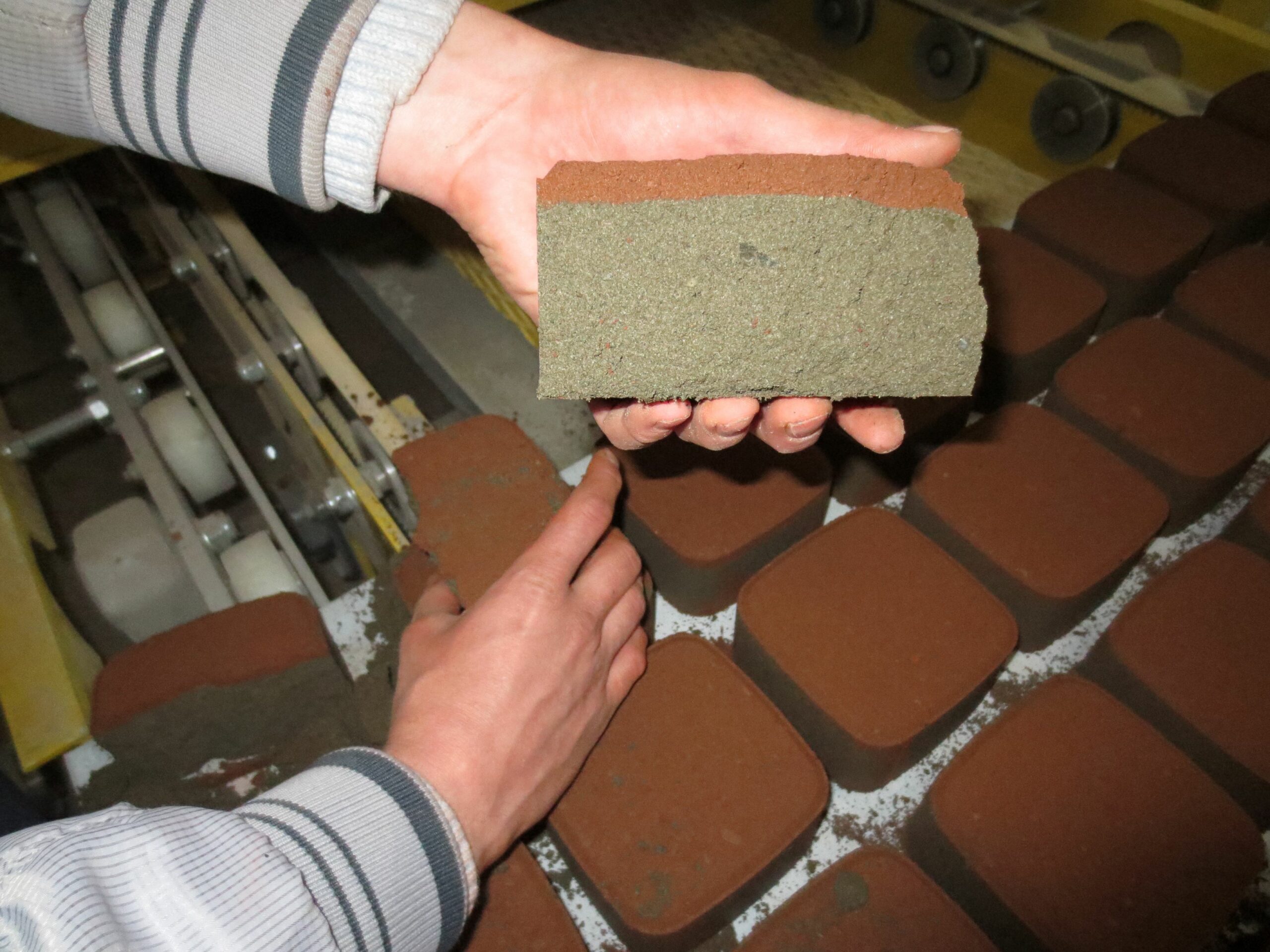

The MEC Paver Block Machine enables the production of a wide variety of high-quality concrete landscaping products with fast production cycles and high output volumes. These can be manufactured in different sizes, shapes, and colors, using alternative materials or even two completely different dry cast mixes. Concrete landscaping products are commonly used for constructing sidewalks, driveways, patios, fireplaces, and various other landscape structures.

What is MEC Paver Block Machine?

The MEC Paver Block Machine is an enhanced version of the original MEC Evolution-20 block machine. It comes equipped with a Face Mix unit and additional software directly from the manufacturing phase, making it a more cost-effective option for customers compared to retrofitting these features later. Additional equipment for surface treatment—such as washing unit, splitting unit, or antique line—can also be sourced from Mecmetal to create even more product variety.



Market-Leading Efficiency

All MEC Block Machines are fully electromechanical, from the block machine itself to every piece of equipment and attachment. These machines are equipped with powerful and precise servo motors as the primary power source for fast and repetitive movements, such as molding, tamping, and vibration operations. While some AC motors remain in place for practical reasons, everything operates within the same servo control system, making the operation system responsive, smart, and versatile—yet still very user-friendly.

The machine’s design is rooted in decades of experience with tested and constantly evolving mechanical solutions. Additionally, new advancements have been developed through active collaboration with customers, addressing the needs of efficient production and market development. Mecmetal has been manufacturing fully electromechanical block machines since 1996



Concrete Intelligence

Our new web-based services are designed to maximize production efficiency and provide rapid responses to any needs. These innovative solutions also offer a wide range of predictive maintenance and real-time diagnostic services.





Attachments

Advantages

  • Fully automatic
  • High utilization rate
  • Extremely fault-tolerant
  • The manufactured pavers are very homogenous and high-quality, less scrap
  • Long machine life cycle
  • Cost-effective
  • Intelligent diagnostics and easy maintenance
  • Up to 90% more energy efficient*
  • Carbon footprint minimized
Technical properties
Fully automatic
Sturdy industrial design
Electromechanical operation, based on servo technology
Smart operation system
Precise guides and gears
Automatic central lubrication system
Directed vibration, with portable frequency and power adjustments
Wide variety of stepless adjustments for all movements
Express mold attachment and mold change automation
Supplied with CE marking as standard, but can be manufactured to meet other standards, such as UL, RCM etc.
Available with many additional equipment for surface treatment; washing unit, splitting unit, antique line and grinding line
* Dependent on selected production pallet size
** Continuous warranty up to 10 years when purchasing new machine with maintenance agreement
Dimensions
Production pallet size options:* Width: 1200 - 1400 mm
Length: 650 - 1400 mm
Thickness: 35 - 50 mm
Product area options:* Width: 1120 - 1320 mm
Length: 600 - 1350 mm
Product height: 15 - 400 mm
Cycle time: 10x20x6 Paver10 - 13 s
Connection power: < 80 kW
Avg. Electricity consumption6 - 10 kWh
Main switch: < 200A
Need for compressed air: 200 liters/min
Frame main dimensions:* Length: 4000 – 6000 mm
Width: 3220 mm
Height: 3300 - 3600 mm
Total weight: approx.* 10 000 – 16 000 kg
WarrantyMachine: 1 year
Frame: 5 years
Additional warranty up to 10 years**
Machines for special needs can be designed to orderAsk more!

More details and features

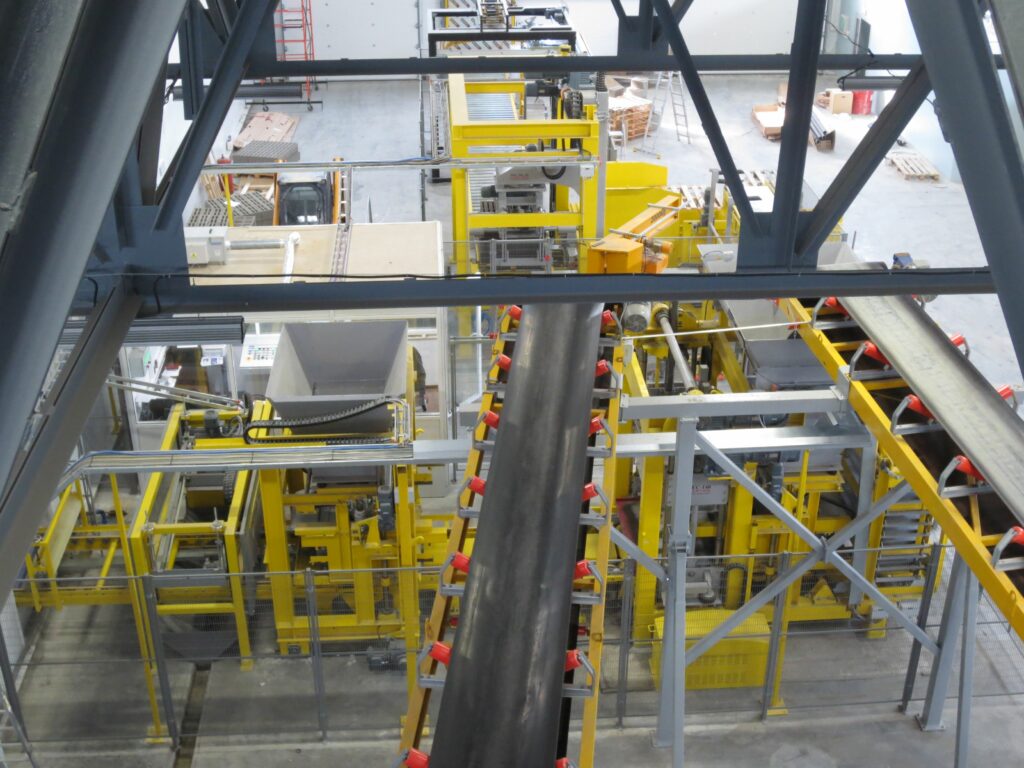

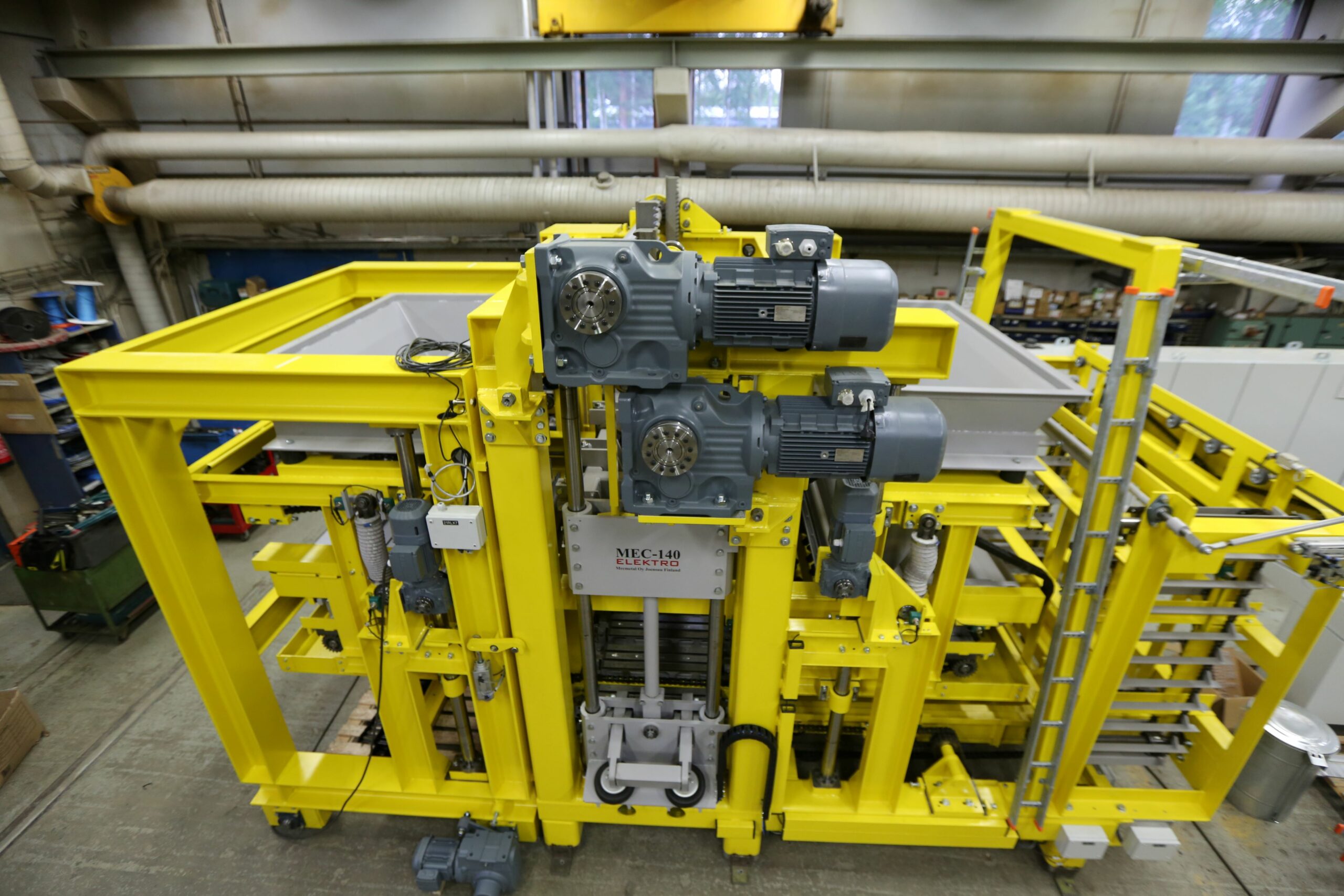

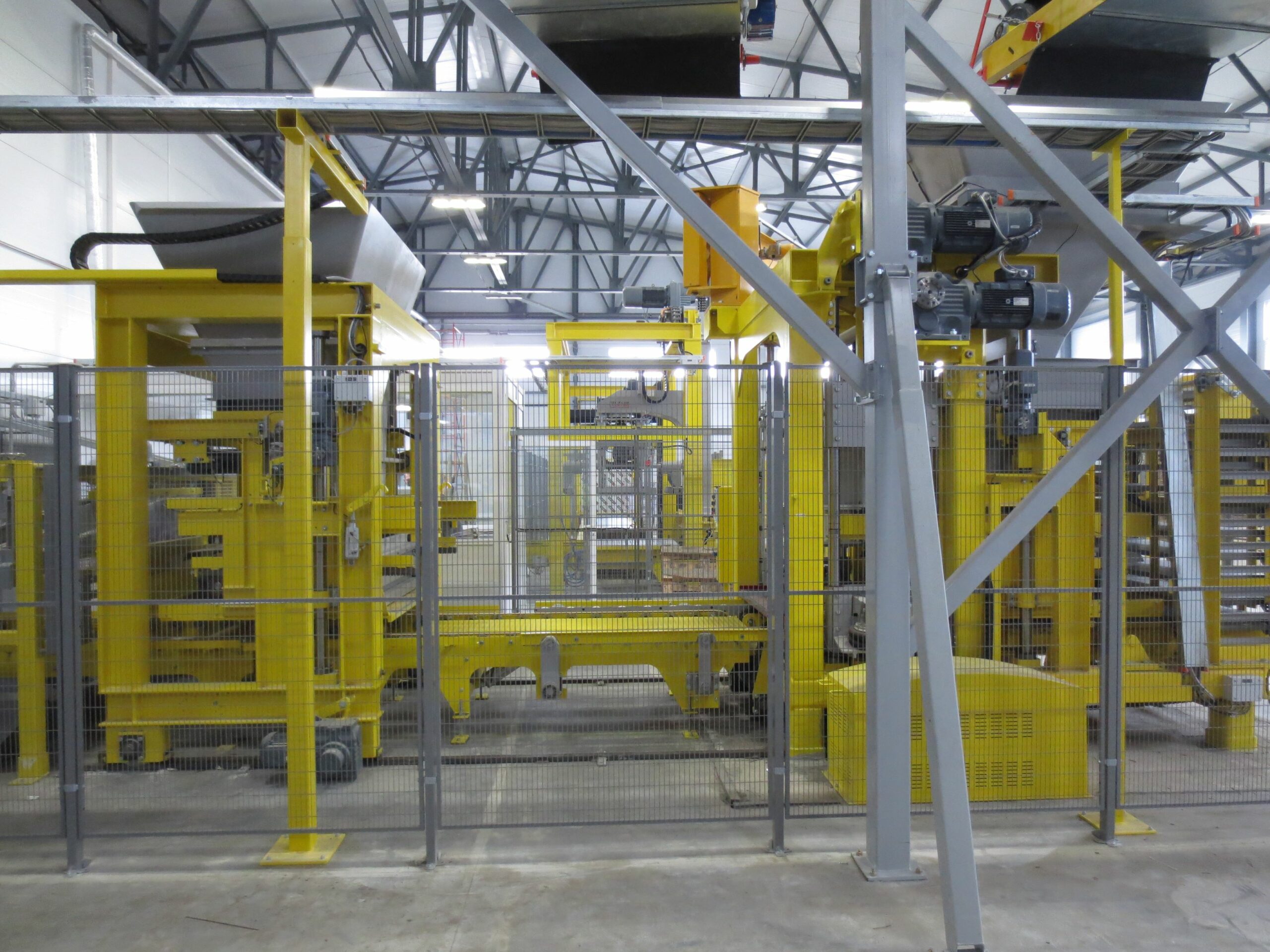

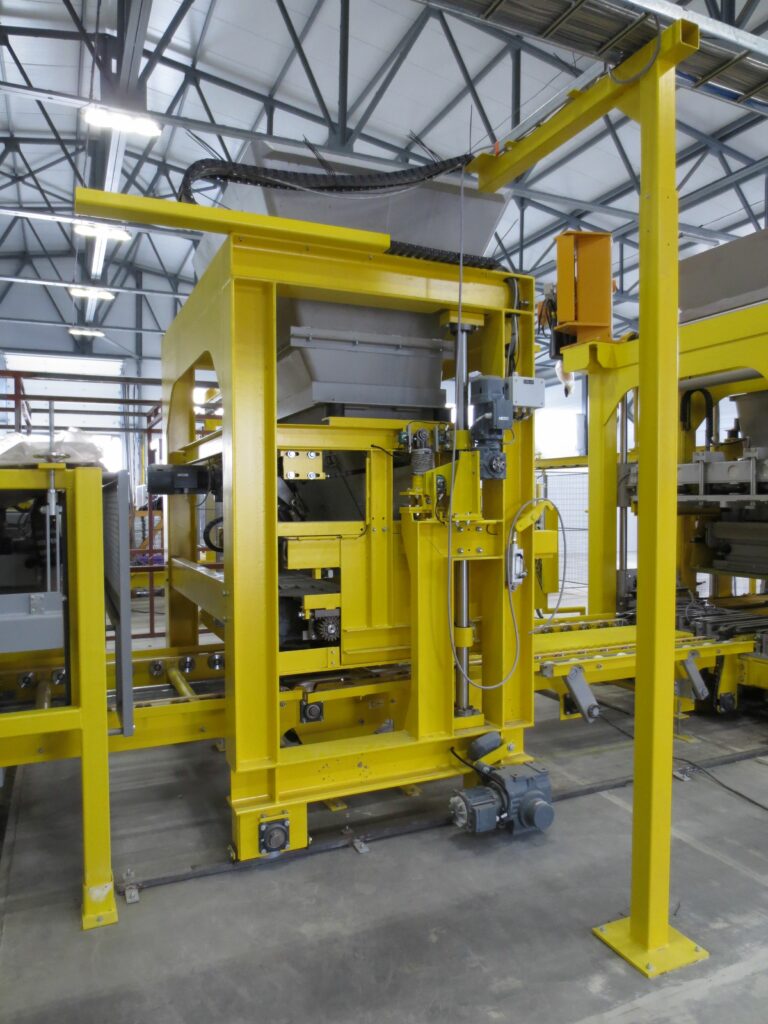

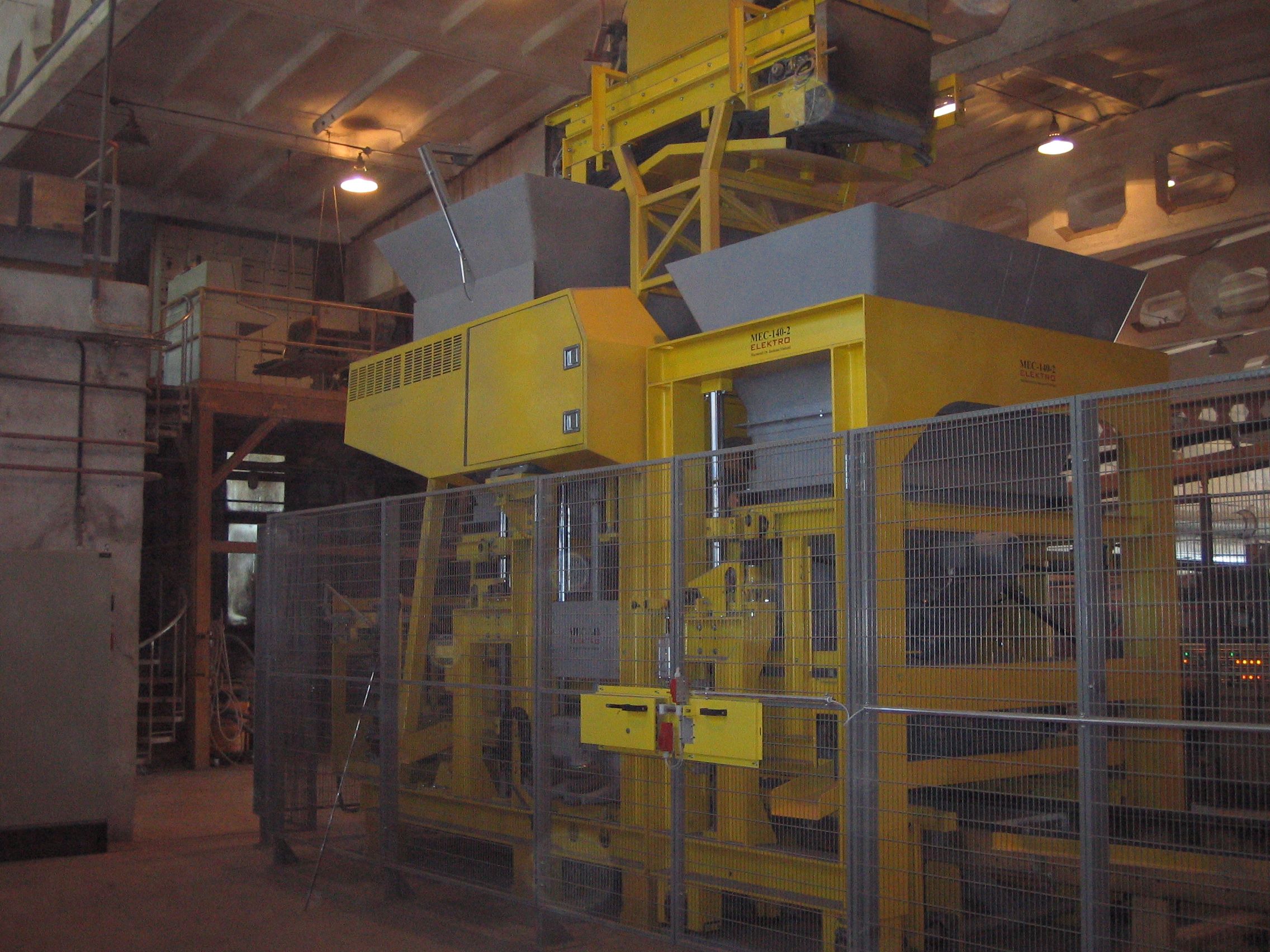

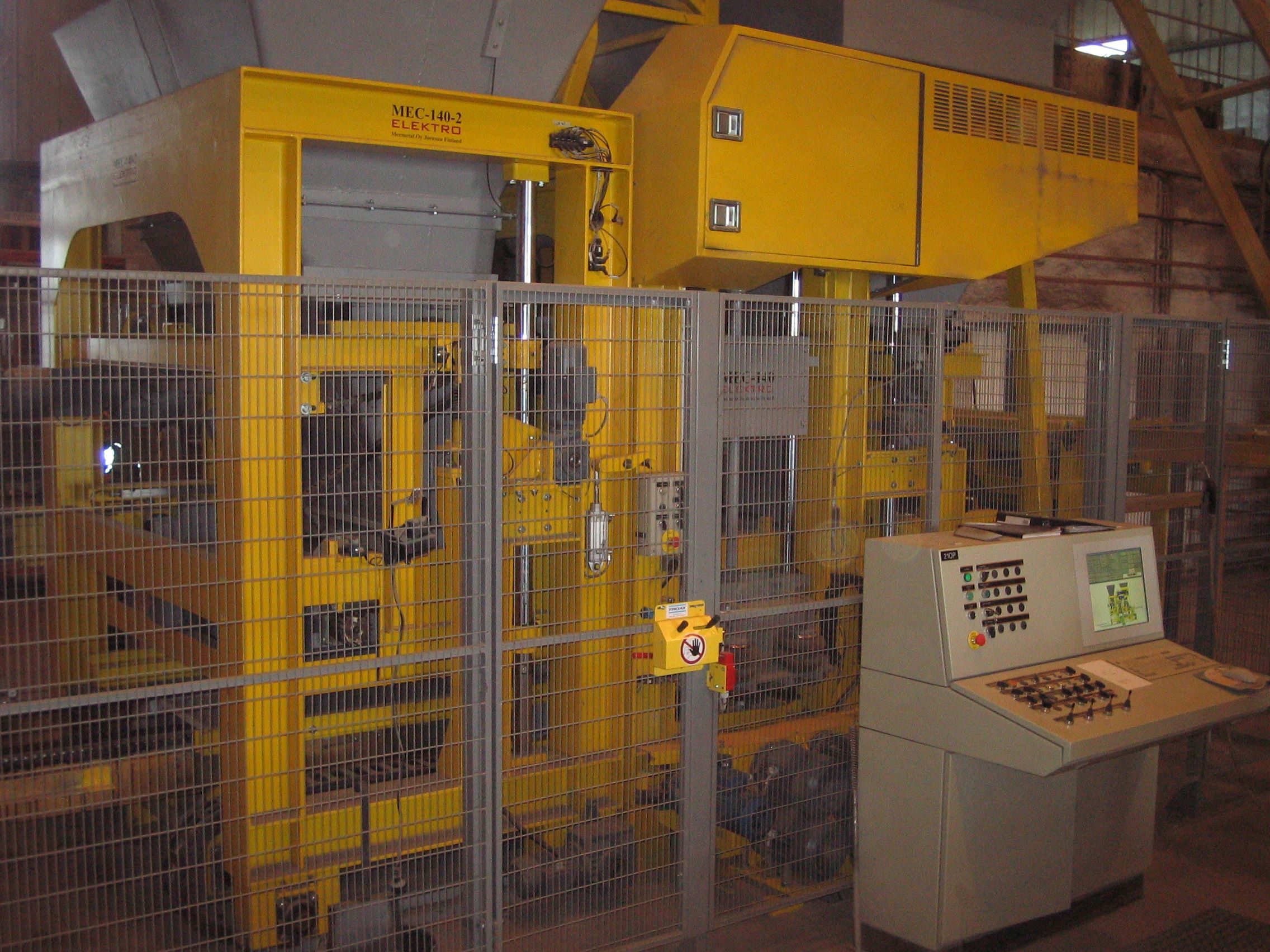

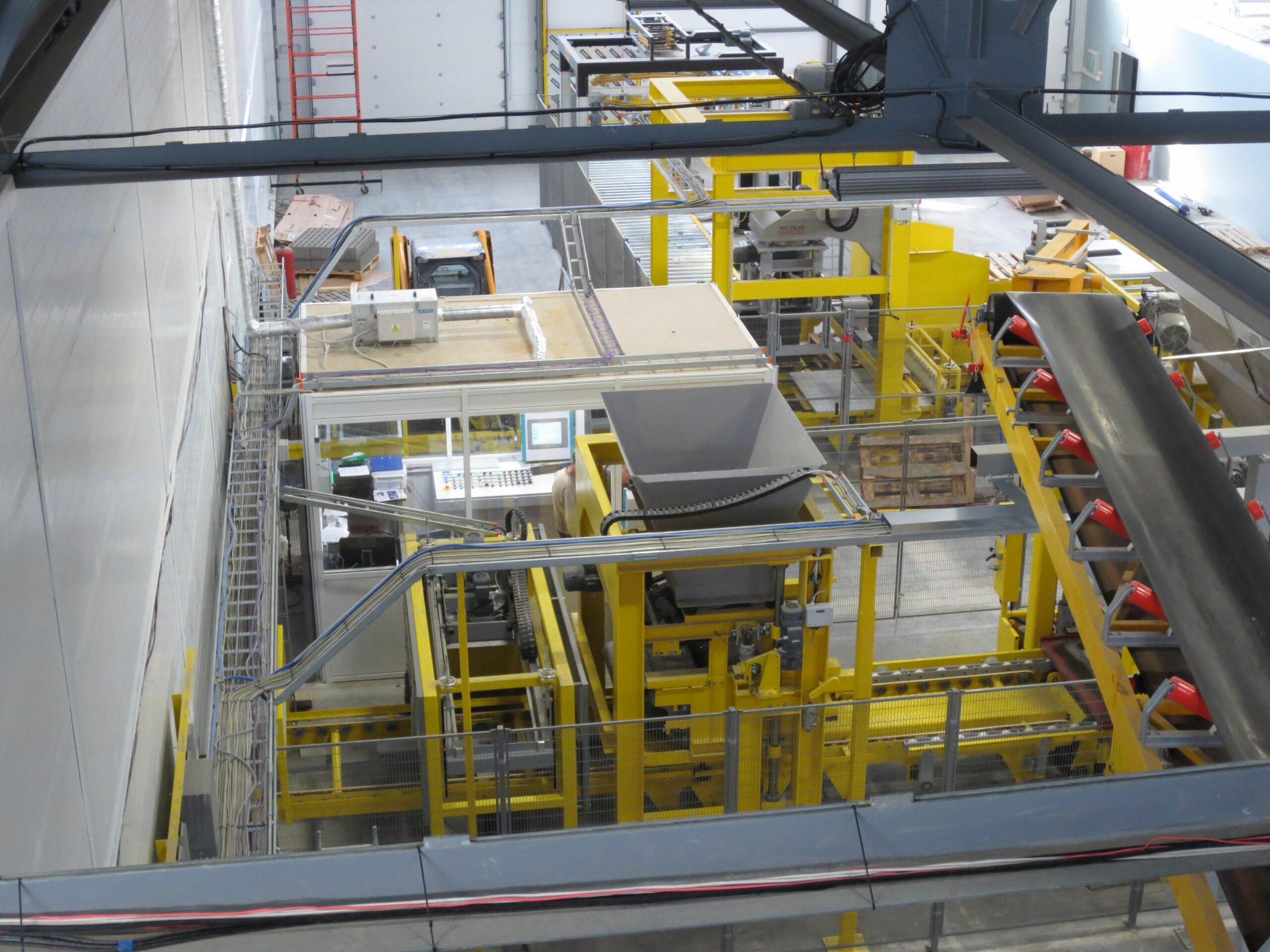

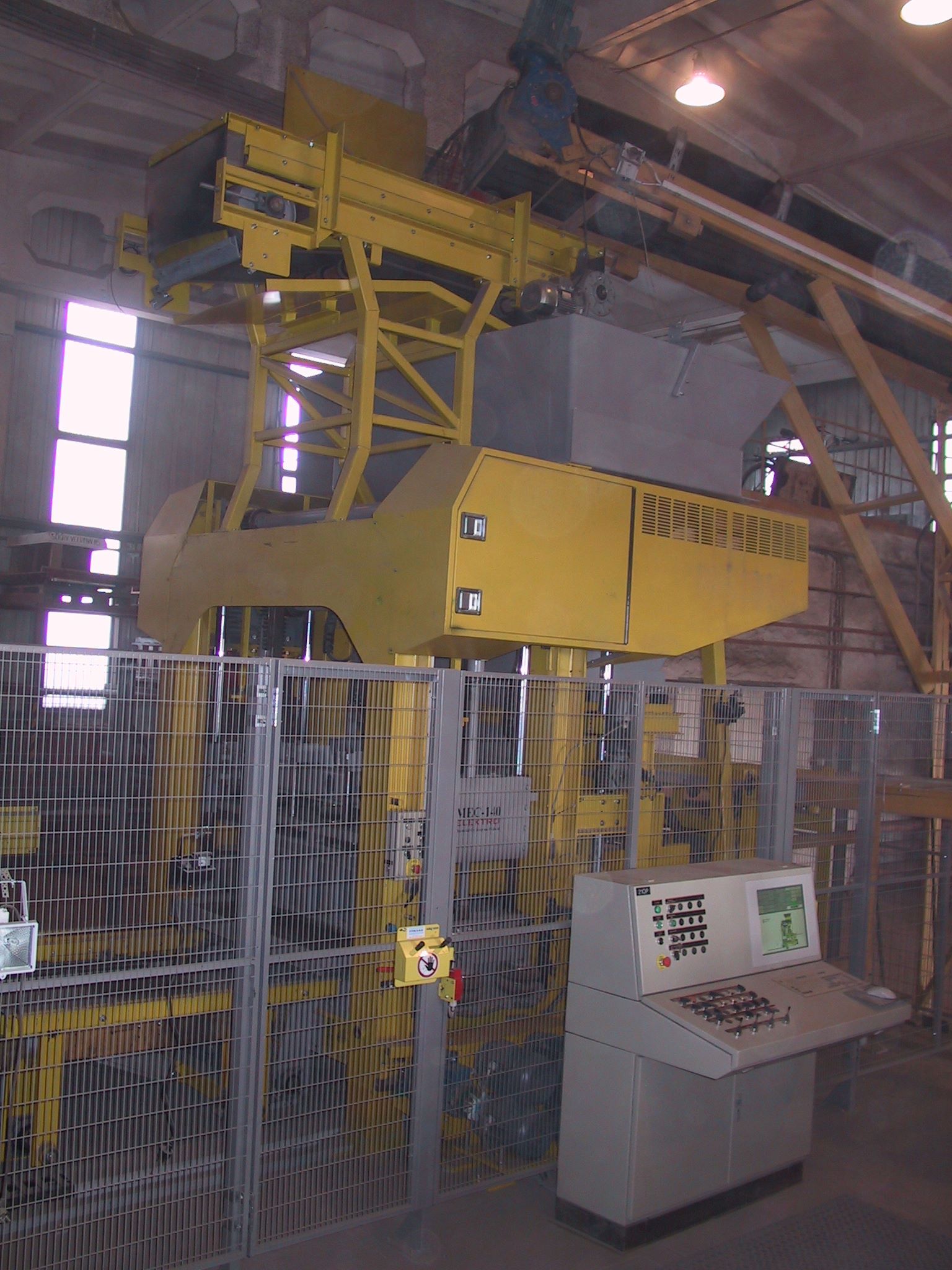

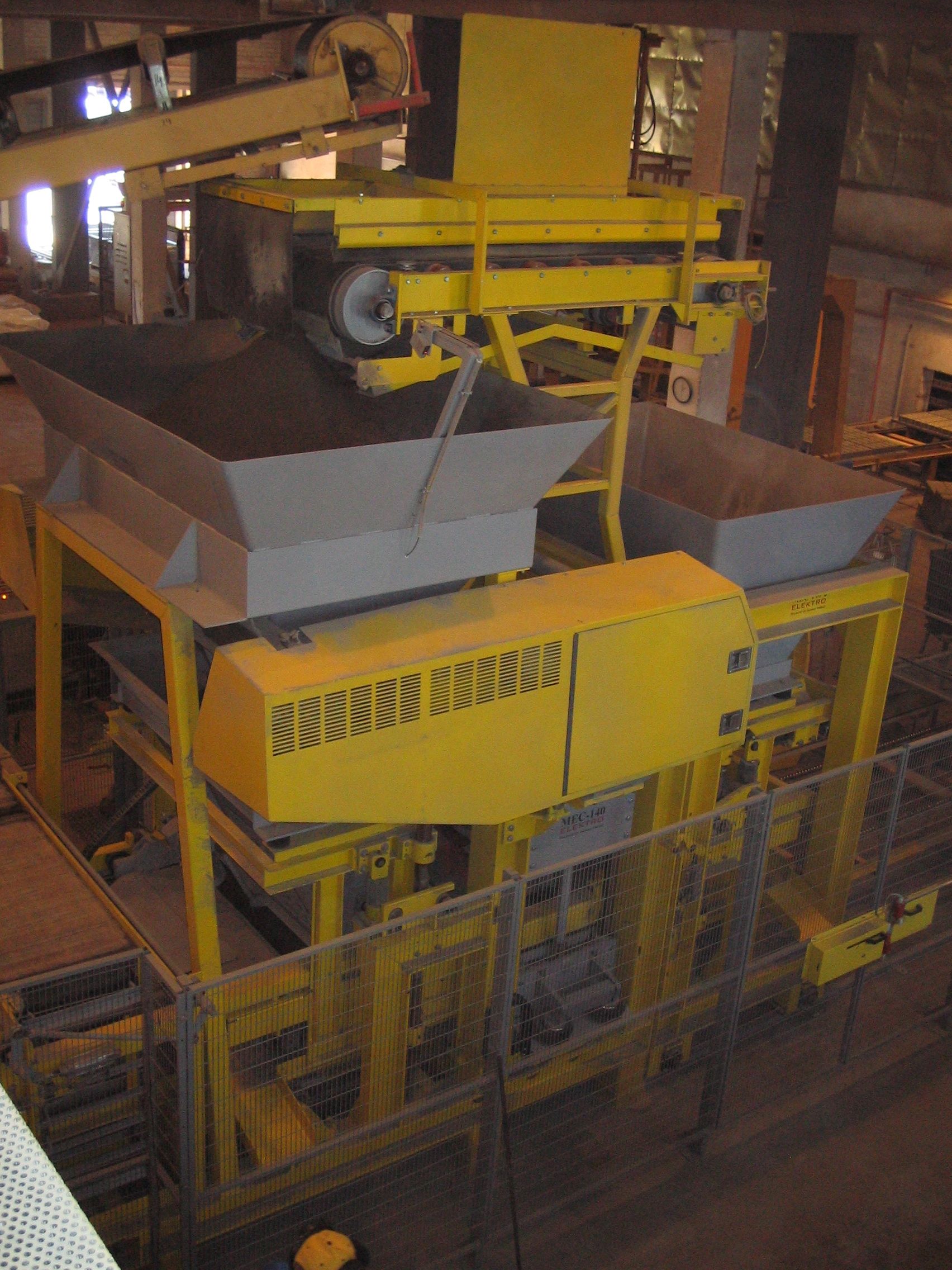

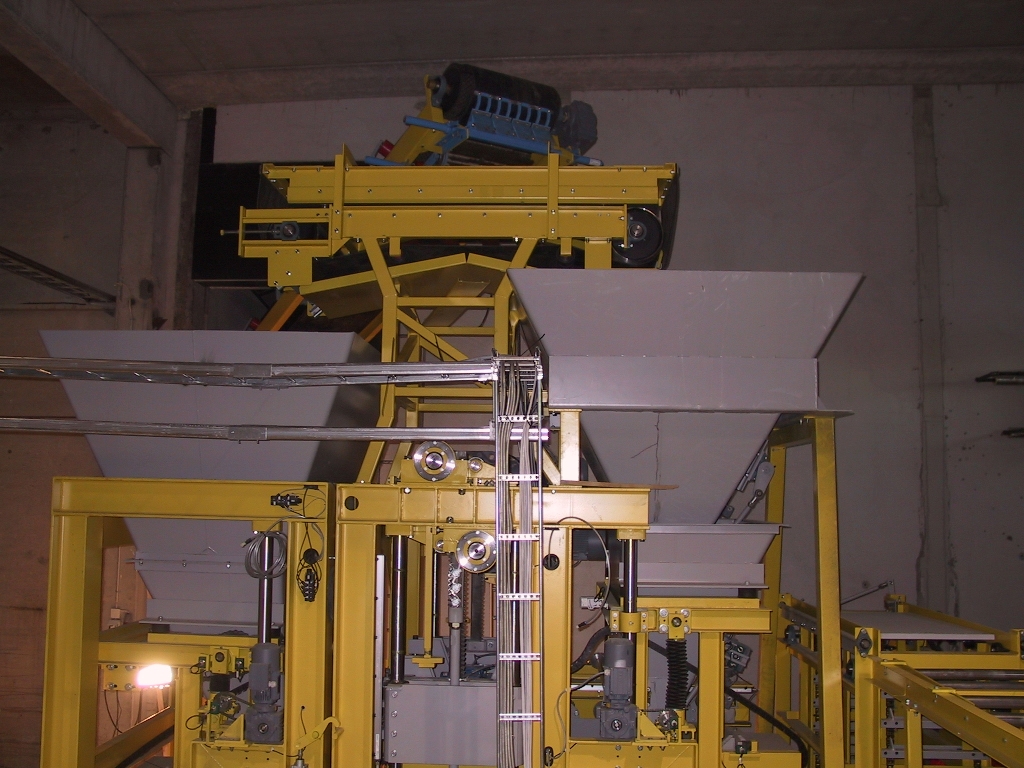

Face Mix unit

  • Fast and precise movements
  • Colormix drawplate can be added
  • Operation system is integrated to Block Machines control system
  • Easy on/off use, when there is no need
  • Face mix unit is installed on rails
  • Installation and remove made easy, if there is need of use e.g insulation feeder for other block production



Block Machine



High utilization rate

  • Operational reliability, less unwanted production stoppages
  • Fast mold changes
  • Little need for manual maintenance
  • Problems are easy to solve for the user due control system guidance



The manufactured products are very consistent and high-quality

  • Fast and precise movement on each cycle
  • Production facility or climate doesn’t have an effect to MEC Block machine production capabilities
  • Real time quality parameter monitoring and feedback that guides the user



Energy efficient

  • MEC Block machines uses only 6 – 10 kWh during full scale production, saving even $100.000+ on electricity bill
  • Energy efficient motors only consume energy during the movements
  • Braking energy is possible to be used in next movement
  • Main switch < 200A
  • Realised energy consumption is being monitored realtime
  • Energy consumption can be optimised



Affordable and predictable maintenance costs

  • We only use proven, high quality materials, parts and components for durability and cost effectiveness
  • Accurate real time diagnostics and fault diagnostics to prevent bigger maintenance needs



Extremely fault-tolerant

  • Sturdy industrial PC designed for 24/7 use
  • No moving parts, no blowers
  • Flash drive that is easy to recover / replace
  • Automation components are high quality and designed for rough conditions
  • Automation components are placed in the control room in their own compact device cabinet away from dust and vibration
  • Dust-proof electric cabinets with integrated cooling system
  • Duplicated fieldbus
  • Automatic backup of the control system’s programs, parameters and recipes



Short downtimes

  • Comprehensive and practical support and maintenance services
  • Fast and easy availability of consumables and spare parts
  • Easy installation of modular components



Ready to rock?

No matter what your block product range is, Mecmetal block machines will meet your needs.
See what you can manufacture with Mecmetal machines.

Read more
